Floorplan - 2008 Jayco Eagle Super Lite 27.5 RKS
-
-
-
-
+6-
6,940 lbs
-
Sleeps 6
-
1 slides
-
Rear KitchenFront Bedroom

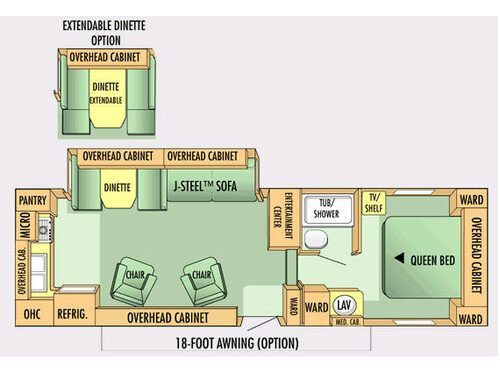

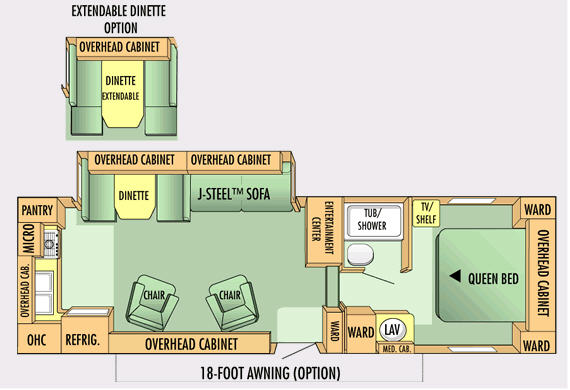

27.5RKS Floorplan
Specifications
| Sleeps | 6 | Slides | 1 |
| Ext Height | 12 ft 1 in | Int Height | 6 ft 9 in |
| Hitch Weight | 1290 lbs | GVWR | 8750 lbs |
| Dry Weight | 6940 lbs | Cargo Capacity | 1810 lbs |
| Fresh Water Capacity | 46 gals | Grey Water Capacity | 65 gals |
| Black Water Capacity | 32 gals |
Description
Single Slide Fifth Wheel w/Rear Kitchen, Double Sink, 3 Burner Range, Pantry, Ovehead Cabinets, Microwave, Refrigerator, Booth Dinette or Extendable Dinette Option & J-Steel Sofa Slideout, 2 Lounge Chairs, Opt. 18' Awning, Entertainment Center, Wardrobes, Lav., Med. Cabinet, Tub/Shower, Front Queen Bed w/TV Shelf, Wardrobes, Overhead Cabinets & Much More.
Features
Standard Features (2008)
Construction
- 8" & 10" Cambered structural steel I-Beam frames
- Heated and enclosed fresh water tank & holding tanks
- Platforms for dinette, bed and bunks are constructed of 1/2" plywood
- Seamless one-piece rubber roof
- FRP smooth fiberglass sidewall exteriors
- Electric-powered slideout (all slideout models)
- 81" living room ceiling height
- Unitized, 1-1/2" laminated construction of floor
- Aerodynamic wrap around front fiberglass sidewalls
- Welded tubular-aluminum sidewall framework
- Bead-foam insulation in sidewalls (R-7) and floor (R-9)
- Pin box, long
- Fully decked roof w/3/8" plywood
- 4 1/2" arched truss roof rafters with R-7 insulation
Heat, Power and Water Equipment
- In-floor ducted heating
- Water heater bypass system
- 12V demand water pump
- 12V electrical system w/deluxe 110V 45-amp power converter
- 6 gal. gas/electric DSI auto-ignition water heater
- 30-amp. power cord
- 110V G.F.C.I. protected exterior receptacles
- Auto-ignition furnace w/wall thermostat
- ABS holding tanks
- Hook-up for city water Outside shower
- Water system winterization kit
- Systems monitor panel
- A/C chill grill
- Double 30-lb. propane bottles w/regulator
- Battery box for two batteries
Kitchen, Bed & Bath
- Drawer for silverware, divided for utensils
- Color-coordinated countertops
- Mixing high-rise faucet
- Acrylic residential-style sink
- Deep-lipped overhead cabinetry
- 3 Burner range w/9,000 BTU SuperBurner and piezo igniter
- Range hood w/light and exhaust fan
- Extra large picture window at dinette
- Spice rack, built in under kitchen sink (select model)
- 17" oven
- Deep storage drawers under booth dinette
- Removable kitchen countertop extension (30.5 RLS only)
- Dream dinette mechanism, raises and lowers dinette table top
- TV cabinet or flip-up TV shelf (select models)
- Under bed storage, bed lifts easily on gas struts
- Privacy curtains (select models)
- Trackless carpeting w/pad
- 312 coil innerspring mattress w/bed struts
- Ceiling vent
- Hardwood decorative headboard
- ABS tub/shower surround
- Towel holder
- Shower curtain w/curved shower track (select models)
- Bar and towel ring
- Marine toilet w/foot flush
- Toilet paper holder
- Medicine cabinet w/mirror
- Vinyl flooring
- Residential 6 panel passage door
See us for a complete list of standard features and options.
All Standard Features and Specifications are Subject to Change.
